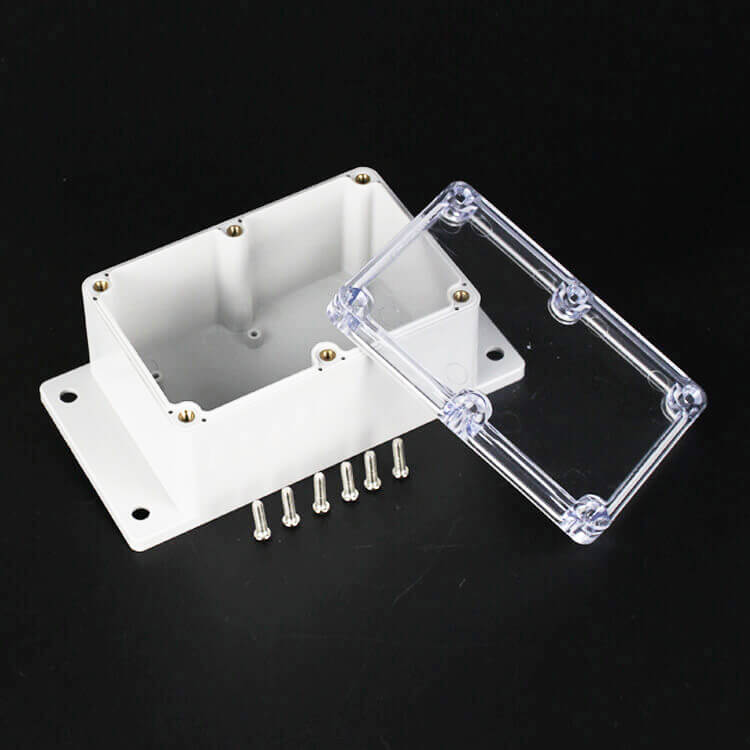

120*81*65mm wall mounting clear plastic waterproof box plastic junction box

Specifications

1, Model:120A-23

2,Material: ABS

3, Color: Grey

4, Weatherproofing via user-fitted O-ring (supplied)

5, Size:120*81*65mm

6, Assembly screws included.

7, Multi-directional mounting feet

Application

Suitable for indoor and outdoor electric,communication, fire fighting apparatus,iron and steel smelting ,petrochemical industry,electron,power system ,railway,building,mine,air and sea port,hotel ship,big workshops,dock unload equipment,waste water treatment equipment, environmental equipment and so on.
Characteristics
n Impact, heat, low temperature and chemical resistance ,excellent electrical performance and surface gross etc.
n Installation
Inside: There are installation holes in the base of circuit board or din rail (more than 2 pieces
of M4 standard brass nuts in each box)
Outside: The products can be directly fixed on the wall or other flat board with screws or
nails via the screw holes in the base.

Detailed pictures

Reference drawing

More sizes for wall mount enclosure with clear lid

Custom Services

1, Change Color, Materail to PC or flame retardant

2, Drill holes

3, Silk Screen

4, Install terminal block

5, Connecting cable gland

6, Install metal/plastic wall mount

7, Developing new moulds

AnBox Electric Co,. Ltd, specializing in design, production and sale various of equipment cases, waterproof boxes, aluminum enclosures, PCB housing, junction boxes, terminal boxes, custom enclosures. etc, our boxes are widely used in automotive, posts and telecommunications, communications, construction, electronic, coal, aerospace, defense, surveillance systems, medical equipment, instruments and meters, LED displays, cable TV ,etc.

AnBox Electric Co,. Ltd is devoting to providing the professional solutions for your electronics, from sample order, logo printing, modification, assembly, custom design, large production to shipping services.

Our waterproof enclosures offer both indoor and outdoor solutions for your watertight application. A variety of accessories are available for the waterproof enclosures, including internal plates, cable glands, and vents.
